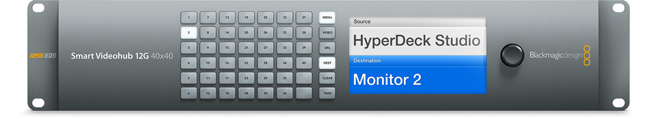

Smart Videohub 12G 40x40
Technical Specifications
Description
Advanced 12G-SDI video router supports any SD, HD or Ultra HD SDI format on the same router at the same time. Smart Videohub 12G 40x40 features 40 inputs and 40 outputs and includes video reference, redundant power connections and an elegant machined metal front panel with large full HD LCD for monitoring and routing label display. Routing can be performed by direct button selection and the spin knob controller. 12G-SDI technology supports all SDI video standards up to 2160p60.
Connections
SDI Video Inputs
40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.
SDI Video Outputs
40 x 10-bit SD-SDI, HD-SDI and 12G‑SDI.
SDI Rates
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Video Input Re-Sync
None.
SDI Reclocking
On all SDI outputs.
Reference Inputs
Tri-Sync or Black Burst.
Reference Outputs
Reference terminating loop output.
Control Panel Connection
Ethernet.
Serial Control Connection
DB-9 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates
USB
Front Panel Router Control
40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. RS-422.
Router Configuration
Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B
SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4
SDI Color Space
YUV or RGB
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
40 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 5 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Software
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Display
Displays
Built in 5 inch LCD for video and menu settings.
Power Requirements
Power Supply
2 x Internal 100 - 240V AC. IEC power cables required.
Power Fail Protection
Crosspoint connections preserved and restored instantly at power on.
Physical Specifications
Physical Installation
2 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating Temperature:
0° to 40° C (32° to 104° F)
Storage Temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
Smart Videohub 12G 40x40
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.

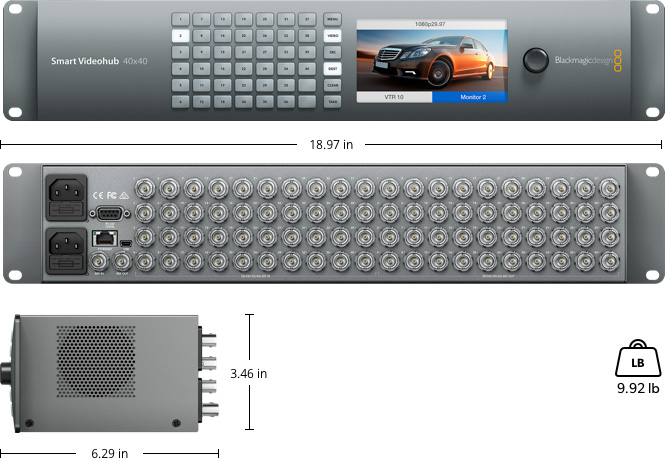

Smart Videohub 40x40
Technical Specifications
Description
Advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring and spin knob control for visual routing so that you can quickly route your video by looking at it! Smart Videohub 40x40 fits a massive 80 multi rate 6G-SDI connections in a compact two rack unit size!
Connections
SDI Video Inputs
40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs
40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates
DVB-ASI, 270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync
None
SDI Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
Reference Input
Tri-Sync or Black Burst.
Reference Output
Reference terminating loop output.
Control Panel Connection
Ethernet.
Serial Control Connection
DB-9 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates
USB.
Router Control
40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address setting only.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
40 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Software
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Display
Displays
Built in 5 inch LCD for video and menu settings.
Power Requirements
Power Supply
2 x Internal 100 - 240V AC. IEC power cables required.
Power Fail Protection
Crosspoint connections preserved and restored instantly at power on.
Power Consumption
58 Watts
Physical Specifications
Physical Installation
2 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating temperature:
0° to 40° C (32° to 104° F)
Storage temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
Smart Videohub 40x40
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.

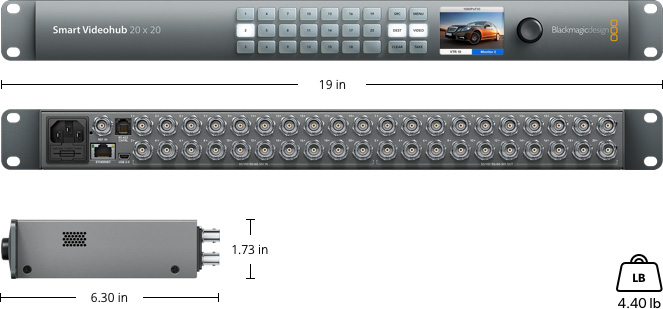

Smart Videohub 20x20
Technical Specifications
Description
Smart Videohub 20x20 is a larger advanced Ultra HD mixed format router with built in control panel and monitoring. Ideal for larger workgroups and mobile broadcasting, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.
Connections
SDI Video Inputs
20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs
20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates
DVB-ASI, 270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync
None
SDI Reclocking
On all SDI outputs
Reference Input
Tri-Sync or Black Burst.
Control Panel Connection
Ethernet.
Serial Control Connection
RJ-7 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates
USB.
Router Control
21 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p,
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4 10 bit.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
20 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Display
Built in LCD for video and menu settings.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Software
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC. IEC power cable required.
Power Fail Protection
Router connections preserved and restored instantly at power on.
Power Consumption
34 Watts
Physical Specifications
Physical Installation
1 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Smart Videohub 20x20
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.

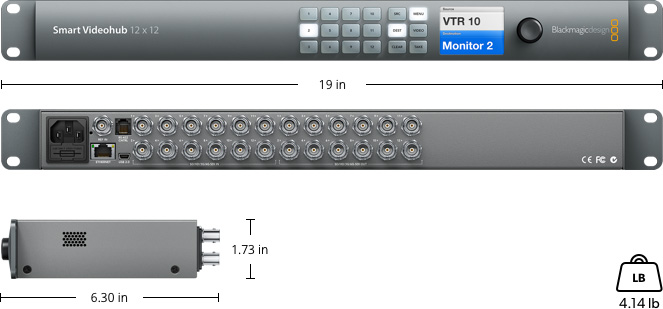

Smart Videohub 12x12
Technical Specifications
Description
Smart Videohub 12x12 is the world's most advanced Ultra HD mixed format router with built in control panel and monitoring. Ideal for small workgroups and fly away kits, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.
Connections
SDI Video Inputs
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates
DVB-ASI, 270Mb, 1.5G, 3G, 6G.
SDI Reclocking
On all SDI outputs.
Reference Input
Tri-Sync or Black Burst.
Control Panel Connection
Ethernet.
Serial Control Connection
RJ-6 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates
USB
Front Panel Router Control
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL.
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Software
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Display
Built in LCD for video and menu settings.
Power Requirements
Power Fail Protection
Router connections preserved and restored instantly at power on.
Power Supply
IEC power cable required. 100 - 240V AC input.
Physical Specifications
Physical Installation
1 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating temperature:
0° to 40° C (32° to 104° F)
Storage temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
Smart Videohub 12x12
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.
Smart Videohub CleanSwitch 12x12
Technical Specifications
Description
Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.
Connections
SDI Video Inputs
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates
270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync
On all 12 inputs for clean switch.
SDI Reclocking
On all SDI outputs.
Reference Input
Tri-Sync or Black Burst.
Control Panel Connection
Ethernet.
Serial Control Connection
RJ-6 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates
USB
Front Panel Router Control
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL.
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Software
Software Control
Router control included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Display
Built in LCD for video and menu settings.
Power Requirements
Power Fail Protection
Router connections preserved and restored instantly at power on.
Power Supply
IEC power cable required. 100 - 240V AC input.
Physical Specifications
Physical Installation
1 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Smart Videohub CleanSwitch 12x12
SD card with software and manual
Warranty
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.
Videohub Smart Control Pro
Technical Specifications
Description
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection!
Connections
Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC
Physical Specifications
Environmental Specifications
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Videohub Smart Control Pro
Warranty
12 Months Limited Warranty.

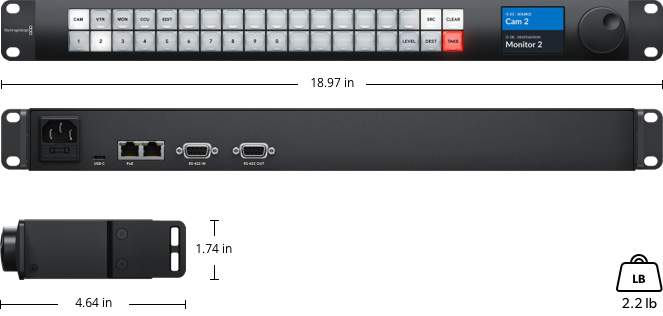

Videohub Master Control Pro
Technical Specifications
Description
When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!
Connections
Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Hardware Control
21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.
Internal Software
Internal Software upgrade via included firmware updater application via USB or ethernet.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power Requirements
Power Fail Requirements
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Videohub Master Control Pro
Warranty
12 Months Limited Warranty.
black magic design video router
Source: https://www.blackmagicdesign.com/products/smartvideohub/techspecs/W-VHS-01
Posted by: richardsniumor1935.blogspot.com
0 Response to "black magic design video router"
Post a Comment
